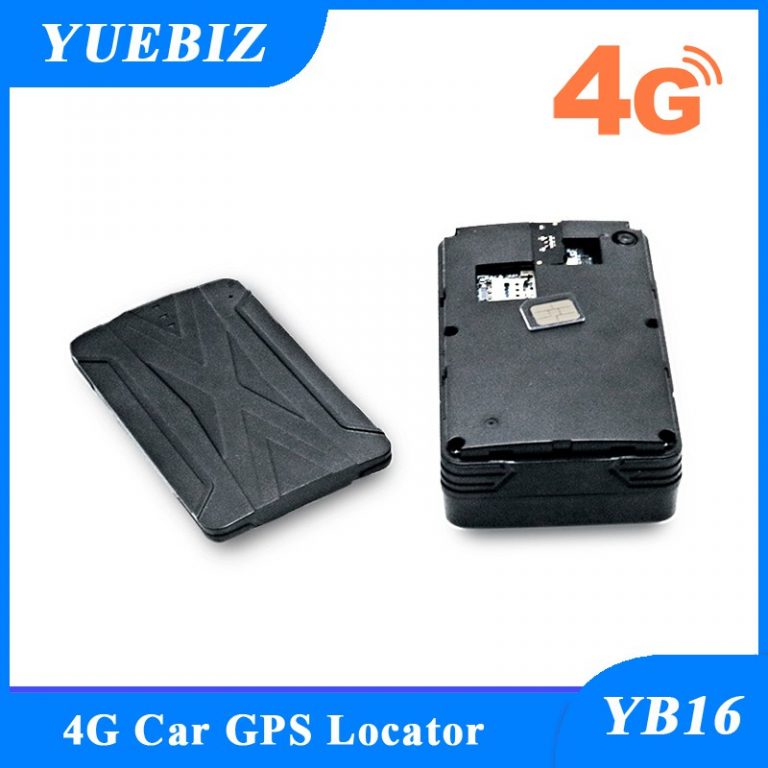

4G version of strong magnetic vehicle positioning terminal
Model: YB16A Size:99 x 61 x 24mm Weight:175g 3.7V – 6000mAh
Model: YB16B Size:99 x 61 x 33mm Weight:255g 3.7V – 10000mAh
Model: YB16C Size:99 x 61 x 50mm Weight:425g 3.7V – 20000mAh
Introduction: Strong magnetic free installation, High-speed Precise positioning, New 4G Vehicles Motorcycle Magnetic GPS Car Tracker China 4G GPS Tracking Device.
New design 4G GPS Tracker wireless recharge battery
Beidou+GPS+LBS base station three-in-one complementary positioning, AGPS-assisted positioning, 4G network make the tracking faster and more accurate, easy way to find out all your assets.
Compatible 3G and 2G network in some country, to avoid mistakes.
Please contact the sales manager to confirm before making your order.
4G magnetic Tracker,
4G Car Locator
4G wireless Tracker
YB16 Main Functions:
1 Real Time tracking by Android&IOS APP,and PC also.
2 Voice Monitoring
3 Over-Speed alarm
4 Vibrataion alarm
5 Low battery alarm
6 Displacement alarm
7 Turn off device remotely
YB16 Specifications:
Chip: Spread Trum SC9820e
Location precision: 10 Meter
G-sensor:Three axis acceleration sensor
Start Time: Cold start 45-120s Warm start -35s Hot start -1s
Voltage:DC 5V
Operating term: -20℃~55℃ Operating humidity:5%-95%
Storage term:-40℃ ～85℃
Size: 99 x 61 x 24mm; 99 x 61 x 33mm; 99 x 61 x 50mm
Weight:175g/255g/425g(A/B/C)
Basic function of YB16 gps tracker:
1) Communication with 4G/3G/2G,
TDD: B38/B39/B40/B41; FDD: B1/B3/B8;
WCDMA: B1/B5/B8; GSM900/1800 MHz.
2) Track by your computer/PDA/cell phone/Google earth or our platform.
3) Google link in mobile SMS, can be opened by smart phone.
4) Real-time track, get longitude, latitude, speed and time, also can get real address name by setting APN.
5) Auto track, automatically get information with interval.
6) Position by both GPS and GSM (LBS), when lose gps, it will position by GSM (LBS).
7) High sensitivity: very quick to get GPS signal and reply to your call or SMS.
8) Geo-fence: send alert when out off preset fence.
9) With over speed alert/low battery alert/SOS alarm, GPS off alert.
10) Monitor mode enable you hear the sound around the tracker.
11) State checking function: can check state of GSM, GPS, GPRS and battery.
12) Vehicle rental/out-door machines and equipment etc.
4G Vehicles Locator
