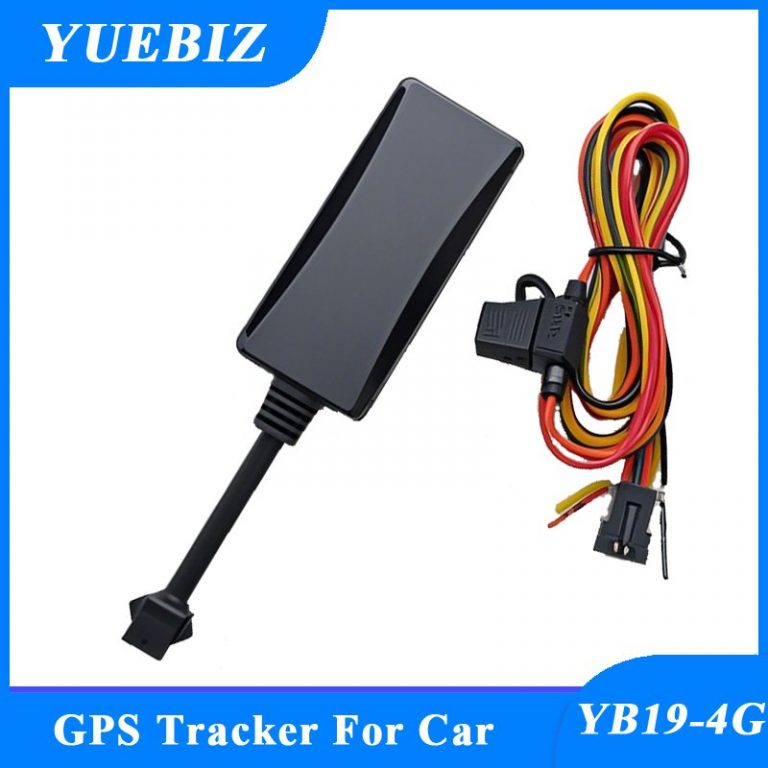

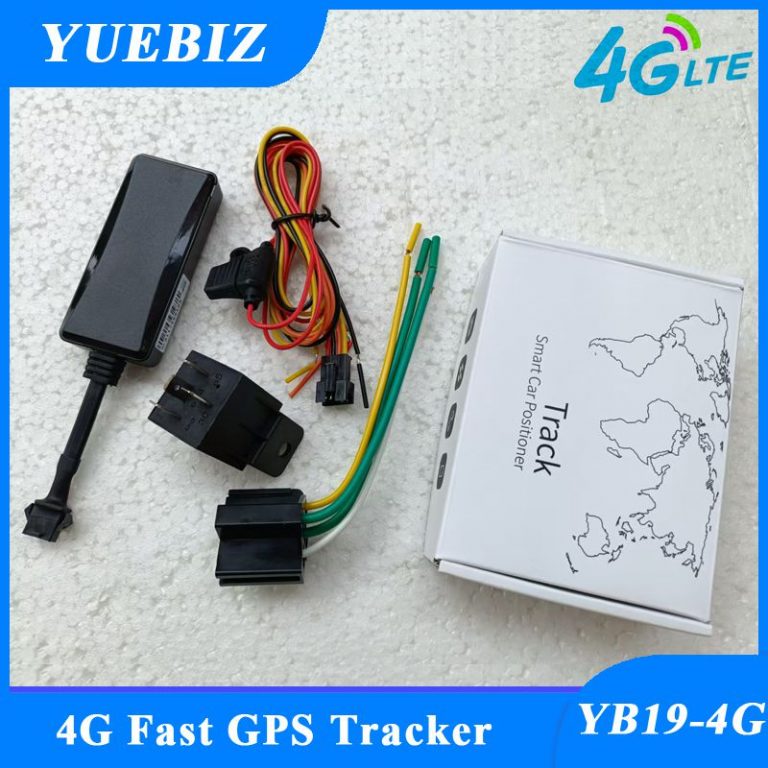

GPS Tracker For Car YB19 Live Tracking Device

Model: YB19-4G
Size: 80(L)mm*39(W)mm*17(H)mm
Weight: 68g
Introduction: Get real-time location tracking for your fleet vehicles with our 4G 4Pin GPS tracker. Improve fleet management and efficiency. Order now!

Product Category

YB19 - 4G 4Pin GPS Tracker For Vehicle

Car Rental GPS

Anti-Jammer Technology: Enhance security with built-in anti-jammer capabilities. Our tracker is designed to resist interference attempts, ensuring continuous and reliable tracking even in the presence of signal jammers. With user-friendly configuration options, you can easily customize settings and parameters to meet your specific tracking requirements.

Wired GPS Tracker YB19-4G Advantages

* Remotely stop and start your vehicle’s engine

* Govern/Control speed and movement.

Main Functions:

* Real-time tracking by Android and iOS APP, and PC also.

* Cut off oil& electric function

* Over-speed/Vibration/Low battery/ Cut off alarm

Specification:

Dimension: 80*39*17 mm          Positioning Accuracy:<5m

Weight: 68 g ( Includes Battery )

Built-in Battery:140mAH(Options with battery)

Working Voltage: 9- 95V DC

Working Temperature: – 20°C to + 60°C

Storage Temperature:- 20°C to + 70°C

Bands:LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66

GSM 850/900/1800/1900MHz

GSM Module Brand / Chip Model:  SIMCOM7670SA

GPS Chipset: ASR1603

Root Mean Square Error: S Degree

Package: 50pcs/carton  Size:46*28.5*32cm  Weight:10KG

H.S. Code for Customs: 8526911000

4G 8pin GPS
GPS with voice monitoring
GPS with speed control

Looking for high quality 4G 4Pin cable with anti-jamming device? Check out our products for reliable and secure communication solutions.



With our 4 G 4Pin GPS tracker, you can get real-time location tracking for your fleet vehicles. This will improve fleet management and efficiency. Order now!

Remotely cut off oil

Live Tracking Device

Remotely stop and start vehicle

GPS with SOS
Real-time ACC alerts
Driving behavior detection

Precise localization,
Track the query

Fleet Vehicle Tracker
Track Anytime Anywhere
Phone Tracking:
Please download our phone APP(YI Tracker) for IOS/Android system according to the instruction handbook after you bought trackers.
Tracking Car’s Trails By Phone:
Tracking Car’s Trails isn’t a dream.
We developed the APP for using smart phone to track the car. All you need to do is download and install the APP to your phone, and then you can track your car immediately.
Replaying Car’s Historical Route:
The historical moving route of the latest 3 months of the tracker can be replayed on our Android/IOS tracking APP(YI Tracker) or Webpage(https://www.yuegps.com) tracking platform.
Micro GPS Tracker
gps vehicle tracking



PRODUCT SPECIFICATIONS

Specifications

Parameters

Dimensions

80*39*17 mm

Weight

68g ( Includes Battery )

Built-in Battery

140mAHOptions with battery

Working Voltage

9-95V DC

Working Temperature

Storage Temperature

– 20°C to + 60°C

– 20°C to + 70°C

Sensor

Precision Vibration Sensor

Bands

LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66

GSM 850/900/1800/1900MHz

GSM Module Brand / Chip

Model

SIMCOM7670SA

Root Mean Square Error

S Degree

Output Power Max



EGSM900:33dBm±2dB/5dBm±5dB

DCS1800:30dBm±2dB/0dBm±5dB

EGSM900 (8-PSK)27dBm±3dB/5dBm±5dB

DCS1800 (8-PSK)26dBm±3dB/0dBm±5dB

WCDMA B1/B5/B824dBm+1/-3dB/<-49dBm

LTE-FDD B1/B3/B5/B823dBm±2dB/<-39dBm

LTE-TDD B34/B38/B39/B40/B41

23dBm±2dB/<-39dBm

Dynamic Output Range

-15~-108dbm

Receiving Sensitivity

-107dbm

Maximum Frequency Error

±0.1ppm

Sensitivity



Cold Start-145 dbm

Hot Start-156 dbm

Warm Start-145 dbm

Navigation-160 dbm

Tracking-162 dbm

Positioning Accuracy

5m

First Positioning Time

Cold StartAverage 32s

GSM Antenna

Built-in

LED Indicator

Power Indicator,Status Indicator

Transfer Protoco

TCP

Power Detection

Upload alarm data while main power is

disconnected

Data Reporting

Update GPS data in real time and support

customer customization

Geo-Fence

TBD

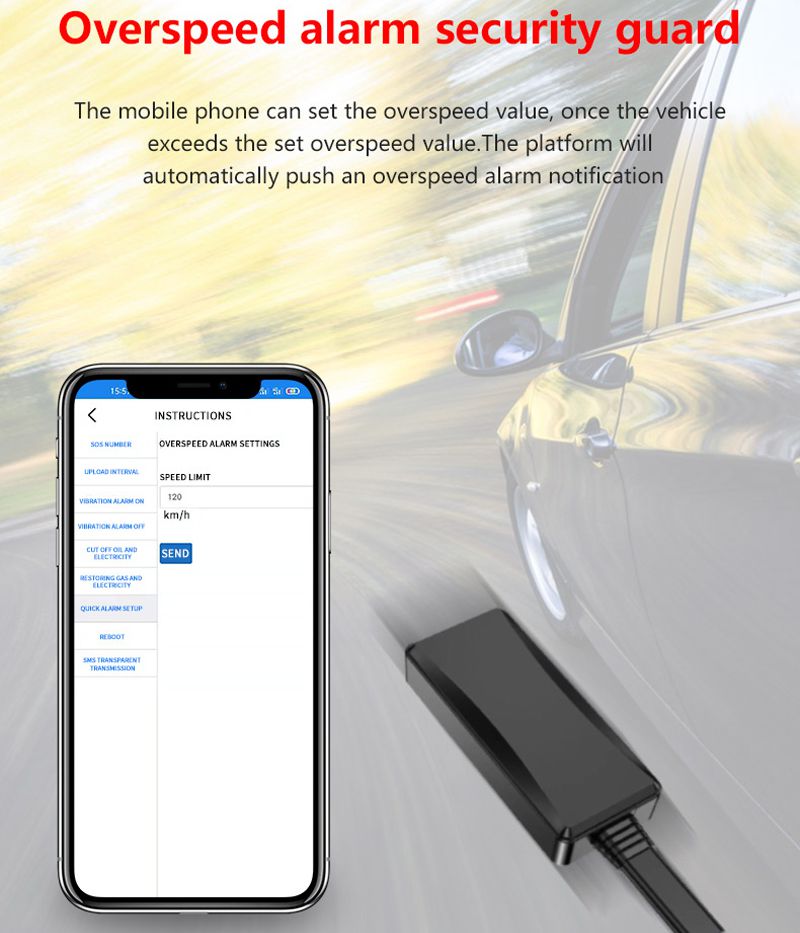

Driving Behavior Detection

When the vehicle speed exceeds the set speedupload over speed alarm

GPS Data

Real-time location update

Vibration Alarm



Vehicle vibration report in fortified state
